APK Virtual Machine — a DeepSeek Harness plugin

Run a real Android APK inside a local, rooted, open-source Android VM and preview it in the DeepSeek Harness sidebar — streamed as H.264/WebCodecs video at up to 60 fps.

_{Real panel capture: rooted Android 14 guest, live H.264 stream, input controls and installed-app tools — no mockup.}

dsh plugin --profile web add dsh-apk-vm  ·  reproducible demo

Why it is useful

• Sidebar-first Android — install and use an APK without opening a separate emulator window.
• Real, low-latency stream — H.264/WebCodecs up to 60 fps with tap, swipe, key and text input.
• Agent-native — apk_vm tools, a live UI Inspector, copy-ready selectors and record/replay flows.
• Local and inspectable — open-source AOSP emulator, rooted debug API, network/storage controls, no telemetry.
• Expandable viewer — turn the narrow sidebar panel into a full-window VM with one click; Escape restores it.
• Large-screen controls — collapsible tools, quality presets (540p/30 → 960p/60), double-click expand, quick rotate, and a stale-UI/version warning.

This repository contains the static DSH plugin dsh-apk-vm. It adds a first-class sidebar entry ("APK Virtual Machine" / "APK 虚拟机") whose main panel boots an AOSP Android Emulator, installs an APK into the guest, streams the guest display into the panel, and forwards tap / swipe / key / text input back into the VM. The guest is a userdebug image prepared for root (adb root on every boot), and the plugin exposes that rooted device to DSH through a same-origin, loopback-only debug HTTP API and an apk_vm Agent tool.

中文简介：在 DeepSeek Harness 的侧边栏里预览 Android APK。插件会启动本地开源 AOSP Android 虚拟机（Android 14 / API 34，system-images;android-34;default;x86_64）， 安装 APK，并通过 scrcpy H.264 + WebCodecs 把画面串流到侧边栏（最高 60 fps），同时把 点击、滑动、按键、文本输入送回虚拟机。支持拖拽 APK 上传、环境自检卡片、root 调试 API 与 apk_vm Agent 工具；多个 Agent 可各自使用独立的隔离虚拟机实例（多开）。 参考机上冷启动约 29.5 s、快照快速启动约 8.4–10.5 s。 当前 Windows x64 与 Linux x86_64（headless）为端到端已验证平台；macOS 仅做探测/CI 覆盖，详见 docs/LINUX-E2E.md。

Status: 0.8.1 · Apache-2.0 · no npm runtime dependencies · no build step.

This is an open-source DSH plugin published on npm as dsh-apk-vm. Repository: github.com/yuxiaole-bili/dsh-apk-vm. Maintainer: yuxiaole-bili. Please read CONTRIBUTING.md, CODE_OF_CONDUCT.md, SECURITY.md, docs/PRIVACY.md and docs/RELEASING.md before opening issues or releasing.

One-line value

Turn DeepSeek Harness into a local Android APK workbench: boot a rooted AOSP VM, preview it at up to 60 fps in the sidebar, and let Agents install, tap, inspect and debug APKs without leaving the session.

Install

Install the published npm package (the command used by the DSH plugin center and the community market):

dsh plugin --profile web add dsh-apk-vm

For the Electron-managed Desktop profile, use Plugins → add/install local bundle with this directory, or install the package through the app's plugin manager.

Source fallback without npm:

dsh plugin --profile web add github:yuxiaole-bili/dsh-apk-vm
# local clone / non-Electron profile:
dsh plugin --profile desktop add <path-to-this-clone>

Capability category

开发与运维 / Developer Tools — Android VM lifecycle, APK install/preview, rooted debugging and Agent-facing UI automation for development workflows.

Risks, permissions and compatibility

Requirements

• Android SDK with adb, emulator, sdkmanager/avdmanager, a matching system image and an AVD (the Environment card checks all of this; SDK bootstrap is opt-in).
• Hardware virtualization: AEHD/WHPX on Windows, KVM on Linux, or HVF on macOS.
• Node.js ≥ 20 only for the repository's headless checks; the plugin itself has no npm dependencies or build step.
• Each running VM costs roughly 2.5 GB RAM; maxInstances defaults to 3 extra VMs.

Permissions / risk

• The guest is intentionally userdebug and rooted (adb root on boot); do not put secrets or personal data in the AVD.
• apk_vm is registered for every Agent in the profile and exposes guest root shell, app install/uninstall, UIAutomator and input injection. Grant it the same trust as a terminal on a rooted Android device.
• /apk-vm/* HTTP routes and WebSocket upgrades are same-origin and loopback-only by default; allowRemote: true is an explicit opt-in for use behind a trusted authenticated proxy.
• No telemetry. Network access only occurs for explicit SDK/system-image downloads through the user's sdkmanager, or when the user configures a remote adb device.

Compatibility

• Tested with DSH Desktop 0.2.1-rc.3 (static bundle/plugin APIs).
• Windows x64 and Linux x86_64 (headless, KVM + SwiftShader) are verified end-to-end (boot, H.264, rooted debug, APK install, Agent tool). macOS has SDK discovery + headless CI coverage but no live emulator run in this repository. See docs/LINUX-E2E.md.
• Optional integration with dsh-better-sidebar; the plugin falls back cleanly when that service is absent.
• AOSP Android 14 / API 34, x86_64 system image; physical/remote adb devices can be attached instead of the AVD.

---

Demo / visible proof

Real screenshots from the reference host:

Asset	Status

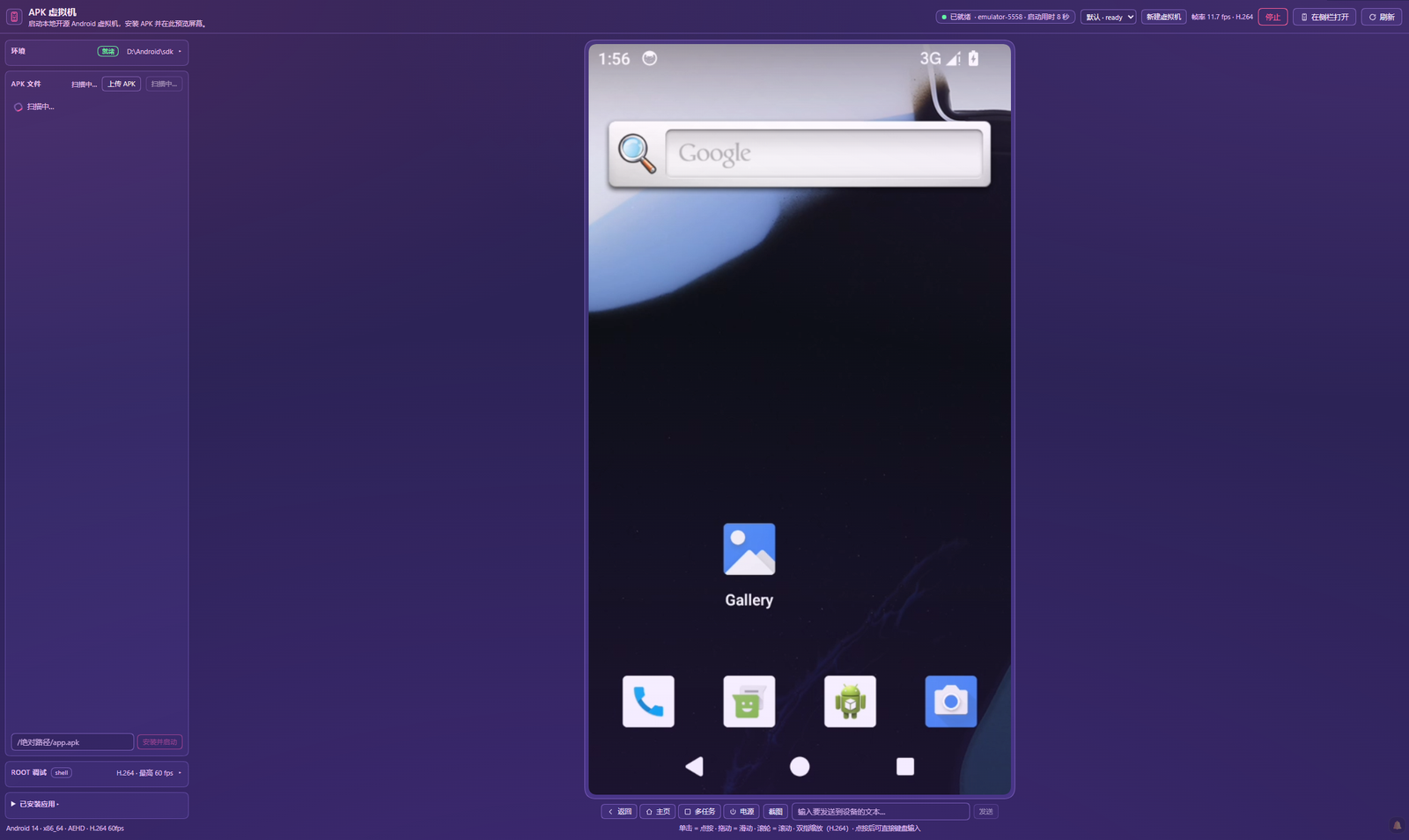

docs/screenshot-panel.png	✅ main panel: Environment, guest H.264, controls
docs/screenshot-sidebar.png	✅ right-sidebar layout next to a session
docs/demo.gif	optional — record a 20–30 s demo on a real host

The Performance and Verification sections list exactly what was measured, on which host, and how. Real apk_vm output from the reference run:

find_ui {"text":"Phone"}  -> Phone @ 102,1121
assert_text {"text":"Phone"} -> found 1 matching UI node(s)
tap_text {"text":"Phone"} -> tapped Phone at 102,1121
key {"text":"HOME"}       -> returned to launcher

---

Features

• Sidebar entry + main panel. Registers a localized sidebar item (sidebar.panellist, id apk-vm, order 30) with a phone glyph (icon.svg), plus a full center-column panel (main, key apk-vm). Both are live-verified in the reference profile.
• Environment self-check card. A one-glance readiness report for the host — SDK, adb, emulator, command-line tools (sdkmanager/avdmanager), the configured system image, the AVD, and CPU acceleration — with the missing pieces and the available repair actions (GET/POST /apk-vm/setup). The card can create the AVD when the system image is already installed, and — when allowSetupDownloads: true — install missing SDK components, or bootstrap a completely empty host (download Google command-line tools, extract, accept licenses, install platform-tools/emulator/build-tools/platform).
• Multi-agent isolation / multi-instance. Several DSH Agents can drive separate VMs at the same time: the first Agent gets the default VM, later Agents are assigned isolated instances with their own AVD, emulator port, snapshot, debug state and H.264/WebCodecs stream (maxInstances, default 3 extra; extra VMs use a 720×1280 preview display). Extra instances expose owner / lastUsedAt / idleMs, and are stopped automatically after instanceIdleMs without panel frames, stream clients or Agent commands (AVD kept for quick reuse). The panel selector and VM instances card show owner/idle state and offer Stop/Destroy. The apk_vm tool accepts instance and exposes list_instances / create_instance / destroy_instance.
• Multi-AVD switching. The Environment card lists the AVDs visible to the emulator and can switch (GET /apk-vm/avds, POST /apk-vm/avd); the current AVD is stopped, switched and restarted automatically.
• APK upload by button or drag-and-drop. The panel has an Upload APK button and a drop overlay on the screen area; the file is posted to /apk-vm/upload (raw APK bytes, ≤ 500 MiB, .apk/ZIP magic checked), installed into the running VM and launched. Uploaded files live in the OS temp dir and are cleaned up when the plugin is disposed. Installing by absolute local path is still available (/apk-vm/install).
• APK bundles: APKS / XAPK / split APKs. The Upload APK flow accepts .apk, .apks (bundletool output) and .xapk files; split APKs are extracted to a temp directory and installed with adb install-multiple. Plain .apk still uses adb install -r. .aab is rejected with a clear "build APKs with bundletool first" message.
• UI Inspector + selector generation. Toggle Inspect UI in the panel to overlay clickable UIAutomator nodes on the live screen. Selecting a node shows its text, resource id, class and bounds and gives copy-ready tap_text / assert_text commands for the apk_vm tool. Also available to Agents as the inspect_ui action.
• Interaction recorder / replay. Start a recording, use the panel or Agent tool normally, then save the tap / swipe / key / text sequence as a JSON flow under the OS temp directory. Flows can be listed, replayed with their original relative timing, downloaded or deleted. Agents get flow_start, flow_stop, flow_list and flow_replay.
• Network debugging and port forwarding. The Network card manages host→guest port forwards, custom DNS (next emulator start), guest /etc/hosts via a root bind mount, HTTP proxy + CA installation, isolated/shared instance modes, and a guest-side connectivity test. Optional pcap capture can be downloaded from the panel. See Network controls.
• Storage panel + guarded cleanup. A Storage card reports the AVD, snapshot, SDK, temp-file and free-disk footprint and offers explicit cleanups: plugin temp files, quick-boot snapshots for a stopped AVD, and orphan dsh_apk_* AVDs. Destructive actions need a second click and never touch the active VM.
• Installed-app management. The panel's Installed apps card lists third-party packages for the active instance and offers force-stop, clear-data and uninstall; it uses the same rooted debug/packages + debug/action API as the Agent tool.
• Optional dsh-better-sidebar tab. When that community plugin is installed, this plugin registers a real tab type (apk-vm:preview) through its service — no fork, no DOM hacks, and it degrades cleanly when the service is absent (see compatibility).
• VM lifecycle from the UI. Start / stop / restart the AVD or save a snapshot; the Environment card lists all adb devices (emulator, USB/physical, network) and can attach one at runtime. Detach restores the managed AVD identity. Live state, serial, boot mode/time, and a bounded diagnostic log are shown.
• APK discovery + one-click install. Recursively finds *.apk under the configured roots, reads package name / label / launcher activity with aapt2 dump badging, then runs adb install -r and launches the app with am start.
• Static APK preview. GET /apk-vm/apk-info?path=… reports version, min/target SDK, permissions, native ABIs, features and launcher activity without starting the VM; GET /apk-vm/apk-icon?path=… extracts the raster launcher icon directly from the APK ZIP. The APK list shows icons when a raster icon is present.
• Live H.264 stream, up to 60 fps. Default transport is scrcpy 5.0.1 H.264 over the same-origin WebSocket /apk-vm/ws, decoded with WebCodecs VideoDecoder onto a <canvas> (configured for 60 fps, 540×960, 6 Mbps). Late clients get a RESET_VIDEO keyframe request. If WebCodecs / WebSocket is unavailable, the panel falls back to adb exec-out screencap -p PNG polling (target 1–10 fps).
• Full input forwarding. Click → tap, drag → swipe, wheel → swipe, two-finger pinch/zoom via the scrcpy control socket, plus Home / Back / Recents / Power and a text field; after clicking the screen, common hardware keys (arrows/Enter/Escape/Tab/Backspace/Delete) and printable characters are forwarded as Android key/text input. Clipboard text can be written to the device (scrcpy SET_CLIPBOARD) or read back (GET_CLIPBOARD). Coordinates are converted from the rendered phone frame to the device resolution.
• Rooted debug surface + extra device tools. Auto adb root after every boot, an on-device toolkit at /data/local/tmp/dsh/debug.sh, a same-origin debug HTTP API, and an apk_vm Agent tool every DSH agent can call: root shell, logcat, props, packages, install, push/pull, reboot, force-stop / clear-data / uninstall, screenshot, rotate, UIAutomator UI tree, 5-second screen recording (pulled to the host temp dir) and performance snapshot.
• Fast start. Hypervisor detection (AEHD / WHPX / KVM / HAXM / HVF), host GPU rendering, quick-boot snapshots, prewarm and auto-start — measured cold 29.5 s, quick boot 8.4–10.5 s on the reference host (details).
• Cross-platform SDK discovery. lib/setup.js and lib/android.js discover Android SDK, adb, the emulator and AVDs across Windows, macOS and Linux layouts (including .exe suffixes and per-OS fallback locations). Windows x64 and Linux x86_64 headless are verified end-to-end; see docs/LINUX-E2E.md.
• Same-origin only. Every /apk-vm/* HTTP route and the /apk-vm/ws upgrade rejects cross-origin requests; request bodies and command output are bounded, and host processes are spawned with argv arrays (never a shell string).
• Themed + localized. All chrome uses --dsw-alias-* theme tokens; English and 简体中文 are bundled in locale/.
• Dependency-free backend. The Host half uses Node built-ins only: no npm dependencies, no build step.

---

UI Inspector and flow recorder

• GET /apk-vm/debug/inspect (and /apk-vm/instances/<id>/debug/inspect) returns the parsed UIAutomator nodes with bounds, labels, and generated find_ui / assert_text / tap_text commands. The panel's Inspect UI button renders the same data as an overlay.
• GET|POST /apk-vm/flows (and /apk-vm/instances/<id>/flows) lists, starts, stops, replays and deletes recorded flows. The panel has a Flow recorder card with the same actions.
• apk_vm actions: inspect_ui, flow_start, flow_stop, flow_list, flow_replay.
• POST /apk-vm/debug/proxy sets the guest HTTP proxy; DELETE clears it.
• POST /apk-vm/debug/ca accepts a host .pem/.crt path and installs it under the guest's user CA directory with the correct subject hash.

Storage management

GET /apk-vm/storage reports the logical size of every AVD, its quick-boot snapshots, the Android SDK, plugin temp files and the free space on the AVD volume. The panel's Storage card uses the same endpoint.

POST /apk-vm/storage accepts:

{ "action": "temp" }
{ "action": "snapshots", "avdName": "dsh_apk", "confirm": true }
{ "action": "orphan-avds", "confirm": true }

• temp removes only screenshots, MP4 recordings, uploaded APKs and flow JSON created by this plugin.
• snapshots deletes the quick-boot snapshots of a stopped plugin-managed AVD; the next boot is a cold boot.
• orphan-avds removes only dsh_apk_* AVDs that are not registered to any instance and are not active.
• apk_vm tool actions: storage, clean_storage (storageAction, avdName, confirm).

Network controls

GET /apk-vm/network returns the guest addresses, current proxy, DNS, hosts count, mode, port forwards and pcap status. POST /apk-vm/network accepts action:

{ "action": "mode", "mode": "isolated|shared" }
{ "action": "forward-add", "localPort": 18080, "remotePort": 8080, "shared": false }
{ "action": "forward-remove", "localPort": 18080 }
{ "action": "dns", "servers": ["1.1.1.1"] }
{ "action": "hosts", "entries": ["198.51.100.10 api.example.test"] }
{ "action": "test", "host": "198.51.100.10", "port": 8080 }
{ "action": "pcap", "path": "D:\\apk-vm-capture.pcap" }

• Port forwards use adb forward tcp:<hostPort> tcp:<guestPort>.
• DNS is applied by the emulator -dns-server flag on the next start.
• Hosts entries are bind-mounted over the guest /etc/hosts (root required) and reapplied after a plugin-managed boot.
• shared forwards are reachable from other VMs through the emulator's host alias; the QEMU NAT itself remains isolated.
• pcap capture is passed to the emulator as -tcpdump and starts on the next emulator start; download via GET /apk-vm/network/pcap.

A public, dependency-free demo lives in examples:

node examples/demo.mjs

It installs the committed MIT-licensed 12 KB sample APK (dev.dsh.sample), reads the UIAutomator tree, taps Say hello, asserts that the screen now says Hello from dsh-apk-vm, and saves a 720×1280 screenshot to examples/demo-out/. No personal APK, private key or host-specific path is required.

---

Quickstart

1. Prerequisites

Requirement	Notes
DeepSeek Harness	A profile that can install local plugin bundles (the desktop Web UI or any agent with the plugin_manager tool).
Android SDK	platform-tools (adb), emulator, build-tools (for aapt2), command-line tools (sdkmanager/avdmanager) and an AOSP system image. A JDK (17 works) is needed by the SDK command-line tools.
AOSP system image	system-images;android-34;default;x86_64 (Android 14, API 34) — the image used for all measurements below. Configurable with systemImage.
Hardware virtualization	Required for the x86_64 image: AEHD or WHPX on Windows, KVM on Linux, HVF on macOS. See acceleration matrix.
Disk / RAM	A few GB for the SDK + system image and the AVD; an emulator with a modern desktop GPU is recommended.
Node.js 24+ (optional)	Only for running this repository's checks (Verification). The plugin itself has no npm dependencies.

The plugin's Environment card performs this check for you (see First run); the commands below are the manual equivalent.

CPU acceleration matrix

Host OS	Backend	How to enable
Windows	AEHD (Android Emulator Hypervisor Driver)	Install via SDK Manager package extras;google;Android_Emulator_Hypervisor_Driver, or the standalone installer; requires administrator rights and a reboot. Recommended when Hyper-V/WHPX is not active.
Windows	WHPX	Enable the Windows Hypervisor Platform optional feature (and Hyper-V if desired), reboot. Alternative when Hyper-V is already in use.
Linux	KVM	Load kvm_intel/kvm_amd, ensure /dev/kvm exists and your user can access it (e.g. kvm group), then reboot/login again.
macOS	HVF (Hypervisor.framework)	Built into macOS; the emulator uses it automatically on Intel and Apple Silicon hosts.

Check the host before starting the plugin:

"$ANDROID_HOME/emulator/emulator" -accel-check

The plugin also runs the SDK's emulator-check accel itself and reports the result in /apk-vm/state (vm.accel), /apk-vm/setup (accel) and the panel log. If no hypervisor is usable, it fails fast with an explicit error instead of hanging for 20 minutes (the x86_64 image cannot boot under pure TCG).

2. Install the plugin

Copy or clone this repository anywhere local:

git clone https://github.com/yuxiaole-bili/dsh-apk-vm.git
cd dsh-apk-vm

Then pick one:

• CLI npm install (community market / non-desktop profile):

  dsh plugin --profile web add dsh-apk-vm


  Source fallback: dsh plugin --profile web add github:yuxiaole-bili/dsh-apk-vm.
• DSH Web UI — open Plugins, choose to add/install a plugin bundle from a local directory, and select this folder. The bundle patch is cordis.patch.yml; the dsh.client declaration in package.json loads client.js into the Web UI.
• Agent tool — ask a DSH agent to run plugin_manager with action install_bundle and the target set to this folder path.
• CLI local install (non-Electron profiles only) — dsh plugin --profile <profile> add <path-to-this-folder>. The Electron-managed desktop profile must be managed from the app UI instead.

After installing or upgrading the plugin, reload the DSH Web page so the new client bundle is loaded.

3. Provide an Android SDK, system image and AVD

The plugin auto-discovers the SDK (sdkRoot, ANDROID_HOME, ANDROID_SDK_ROOT, then common per-OS locations) and adb/emulator. Fastest path: open the panel, check the Environment card, and use Create AVD once the system image is installed. If the image is missing and allowSetupDownloads: true is set, the card can also run sdkmanager --install for it; otherwise install it yourself:

sdkmanager --install "platform-tools" "emulator" "build-tools;34.0.0" \
  "system-images;android-34;default;x86_64"
avdmanager create avd -n dsh_apk -k "system-images;android-34;default;x86_64"

The plugin can also attach to an already-running adb device instead of spawning the AVD; set serial (for example emulator-5558 or <device-ip>:5555) and leave emulatorPath/avdName unset.

4. Configure

The bundle ships with portable defaults (SDK auto-detection, avdName: dsh_apk). Review the config for your machine — at minimum roots if you want extra APK scan directories. The full list of keys is in the configuration reference.

config:
  # sdkRoot: 'C:/Android/sdk'       # optional; otherwise auto-detected
  # emulatorPath: 'C:/Android/sdk/emulator/emulator.exe'  # optional; auto-detected
  # serial: 'emulator-5558'        # ...or attach an existing adb serial instead of spawning
  systemImage: 'system-images;android-34;default;x86_64'
  avdName: dsh_apk
  port: 5558
  roots: ['C:/projects']           # extra APK discovery roots (workspace is automatic)
  gpuMode: host
  accel: auto
  requireAccel: true
  quickBoot: true
  snapshotName: default_boot
  saveSnapshotAfterBoot: true
  prewarm: false                   # opt-in warm boot on plugin activation
  prewarmDelayMs: 3000
  autoStart: true
  multiInstance: true              # isolated VMs for concurrent agents
  maxInstances: 3                  # extra VMs (default VM is always available)
  instanceIdleMs: 900000           # stop idle extra VMs after 15 min (AVD kept)
  instanceReapIntervalMs: 60000
  allowRemote: false               # reject non-loopback VM API clients
  allowSetupDownloads: false       # gate the optional system-image download action
  scrcpy: true
  scrcpyMaxSize: 960
  scrcpyMaxFps: 60
  scrcpyBitrate: 6000000
  frameFps: 2                      # only the PNG fallback target (1-10)

If emulatorPath / adbPath are omitted, the plugin auto-discovers the Android SDK from sdkRoot, then ANDROID_HOME / ANDROID_SDK_ROOT, then common per-user/system install locations, and finally falls back to PATH. Spawning an AVD still needs avdName; use serial to attach an existing device instead.

5. First run

1. Open the DSH sidebar and click APK Virtual Machine. Check the Environment card: green Ready means the SDK, image, AVD and acceleration were found; Setup needed lists what is missing and offers Create AVD (and optionally Download image when allowSetupDownloads: true).
2. Press Start VM (or let prewarm/autoStart boot it). The first start is a cold boot (measured 29.5 s on the reference host); the plugin then saves the quick-boot snapshot default_boot, and later starts restore it (measured 8.4–10.5 s).
3. Install an APK: click Upload APK, drag an .apk file onto the panel, or pick one from the discovered list / install by absolute path. The app is installed and launched automatically. Use the phone frame for input and the Rooted debug card for root shell, logcat, props, UI tree, rotation, recording, perf and screenshot.
4. Or delegate to an agent, for example: "Use the apk_vm tool to install C:/work/app.apk and take a screenshot."

---

Configuration

All keys are optional; defaults are shown in the Default column.

Key	Default	Purpose
emulatorPath	auto-detected	Path to the Android emulator executable. Auto-discovered from the SDK / PATH.
avdName	—	AVD name to spawn. Required to spawn an AVD.
serial	—	Attach this adb serial instead of spawning an emulator.
port	5558	Emulator console port used when spawning.
sdkRoot	ANDROID_HOME / ANDROID_SDK_ROOT	Android SDK root for adb, aapt2, emulator-check, sdkmanager/avdmanager.
adbPath	<sdk>/platform-tools/adb	Explicit adb executable.
systemImage	system-images;android-34;default;x86_64	System image required by the Environment card and used for AVD creation.
spawnEmulator	true	Set false to only attach (never spawn).
emulatorArgs	[]	Extra argv appended to the emulator command line.
roots	[]	Extra APK discovery roots. The DSH working directory, process.cwd() and the home directory are added automatically.
bootTimeoutMs	1200000	Max wait for the guest to report sys.boot_completed=1.
gpuMode	host	host uses the real GPU; swiftshader_indirect is the software fallback for headless hosts.
accel	auto	auto detects AEHD/WHPX/KVM/HAXM/HVF; on/off force the decision.
requireAccel	true	Fail fast with an explicit error when no hypervisor is found, instead of booting forever under TCG.
quickBoot	true	Restore the saved AVD snapshot when present; false adds -no-snapshot.
snapshotName	default_boot	Snapshot name to load/save.
saveSnapshotAfterBoot	true	Save a snapshot after the first successful cold boot.
prewarm	false	Boot the VM in the background shortly after plugin activation.
prewarmDelayMs	3000	Delay before the prewarm start.
autoStart	true	Start the VM on the first /apk-vm/state or /apk-vm/frame request.
multiInstance	true	Allow isolated extra VMs for concurrent Agents.
maxInstances	3	Maximum number of extra instances (in addition to the default VM). Each running instance costs guest RAM/CPU.
instanceIdleMs	900000	Stop an extra instance after this long without panel frames, a video client, or an Agent command (AVD is kept).
instanceReapIntervalMs	60000	How often the idle reaper checks extra instances.
allowRemote	false	Allow non-loopback clients to reach /apk-vm/* and /apk-vm/ws (only behind your own authenticated proxy).
allowSetupDownloads	false	Allow the Environment card's install-image action to run sdkmanager --install (large download).
frameFps	2	PNG fallback target frame rate, 1–10 (the H.264 path is not affected).
scrcpy	true	Enable the H.264/WebCodecs transport.
scrcpyMaxSize	960	Encoder max size; 960 yields 540×960 video.
scrcpyMaxFps	60	Encoder frame-rate cap, 1–60.
scrcpyBitrate	6000000	Video bitrate in bits/s.
scrcpyPort	27183	Local adb-forward port for the scrcpy server tunnel.
scrcpyJarPath	vendored JAR	Override the scrcpy server JAR path.

The Environment report (GET /apk-vm/setup) returns ok, platform, sdkRoot, adbPath, emulatorPath, avdmanagerPath, sdkmanagerPath, emulatorVersion, systemImage + systemImagePresent, avdName + avdPresent + avdPath, accel { available, backend, detail }, hypervisorNotes, missing[] and actions[] with per-action availability.

---

Architecture

┌────────────────────────────── DSH Web UI ────────────────────────────────┐
│ sidebar.panellist [apk-vm, order 30] ──click──▶ main[apk-vm] panel       │
│                         Client half: client.js                           │
│  Environment card · upload/drop · APK list · phone frame (WebCodecs      │
│  canvas or PNG fallback) · Rooted debug card                             │
└──────────────────────────────────┬───────────────────────────────────────┘
                                   │ same-origin HTTP + WebSocket
┌──────────────────────────────────▼───────────────────────────────────────┐
│ DSH Host: index.js  (/apk-vm/* routes, ws relay, debug API, agent tool)  │
│  ├─ lib/android.js  AndroidVm: AVD lifecycle, adb, aapt2, input, debug   │
│  ├─ lib/setup.js    Environment detection, createAvd, installSystemImage │
│  ├─ lib/scrcpy.js   ScrcpySession: push server, adb forward, H.264 demux │
│  │                  (Annex-B → AVCC), control messages (RESET_VIDEO, …)  │
│  └─ lib/ws.js       dependency-free RFC 6455 WebSocket server            │
└──────────────────────────────────┬───────────────────────────────────────┘
                                   │ adb
                    ┌──────────────▼──────────────┐
                    │ AOSP Android Emulator        │
                    │ Android 14 / API 34, x86_64  │
                    │ userdebug, adbd as root      │
                    └──────────────────────────────┘

Layer	Implementation	Role
VM	AOSP Android Emulator (emulator + system-images;android-34;default;x86_64)	Boots the open-source Android system image; driven through adb.
Setup	lib/setup.js	Dependency-free SDK / adb / emulator / AVD / acceleration detection plus one-click create-avd and optional install-image.
Streaming	scrcpy 5.0.1 server (lib/vendor/scrcpy-server-v5.0.1.jar, pushed to /data/local/tmp/scrcpy-server.jar) + lib/scrcpy.js	H.264 screen capture and the scrcpy control protocol, without the desktop scrcpy client.
Device bridge	adb from Android SDK platform-tools	install / launch / screencap / input / logcat / file push-pull.
Plugin runtime	DSH plugin APIs (slots, locale, webServer, tools, dsh.client)	Sidebar entry, main panel, same-origin HTTP/WebSocket control plane, agent tool.

No npm dependencies are used: the Host half imports only Node built-ins, client.js is a pre-built browser bundle, and the plugin has no build step.

Fast start: four layers

Layer	What it does
Hardware CPU acceleration	Runs emulator-check accel; when AEHD / WHPX / KVM / HAXM / HVF is usable the emulator gets hardware virtualization. Pure TCG is never silently attempted for the x86_64 image (requireAccel: true fails fast with a clear error).
Host GPU	-gpu host renders the VM with the real GPU instead of SwiftShader; switch gpuMode on headless/no-GPU hosts.
Quick-boot snapshot	The first successful cold boot saves adb emu avd snapshot save default_boot; later starts pass -snapshot default_boot. A leftover ram.img without snapshot.pb is not treated as a valid snapshot.
Warm start	prewarm: true boots the VM ~3 s after plugin activation; autoStart: true boots it on the first /apk-vm/state//apk-vm/frame request.

/apk-vm/state exposes vm.bootKind (cold / snapshot / attach), vm.bootMs, vm.accel, vm.gpuMode and vm.snapshotAvailable; the panel shows cold Ns / quick Ns.

H.264 streaming and input

The default transport (when scrcpy: true) is:

scrcpy-server (guest H.264) → adb forward → ScrcpyVideoDemuxer → Annex-B→AVCC
  → /apk-vm/ws WebSocket → browser VideoDecoder → <canvas>

• WebSocket text frame init: { codec:"h264", codecString, description (avcC, base64), width, height, maxFps, bitrate }.
• Binary frame: [0]=1][1=keyframe flag][2..9]=pts (int64 LE)][10..]=AVCC NAL units].
• A client that connects to an already-running session triggers a scrcpy control RESET_VIDEO (type 17) so it receives a fresh keyframe; clients drop delta frames until the first keyframe so the canvas never decodes garbage.
• The session is shared by all connected clients; when the last client disconnects the scrcpy encoder is stopped after a grace period (the VM keeps running). Stopping/restarting the VM or unloading the plugin stops the stream.
• Input is independent of the streaming path: /apk-vm/input remains the only input channel (the panel does not bypass it), so input keeps working with the PNG fallback.

The protocol notes collected while implementing this against scrcpy 5.0.1 are in spike/scrcpy/PROTOCOL.md.

HTTP control plane (same origin, local only)

Every route rejects cross-origin requests; the WebSocket upgrade is checked the same way. JSON bodies are bounded to 64 KiB; the raw APK upload is bounded to 500 MiB.

Method	Path	Purpose
GET	/apk-vm/state	VM state, serial, boot time/kind, accel/GPU, root/debug status, display size, current APK, stream counters, log tail.
GET	/apk-vm/setup?force=1	Environment report (SDK/adb/emulator/tools/image/AVD/acceleration, missing items, available actions). Cached ~15 s.
POST	/apk-vm/setup	{"action":"refresh"|"create-avd"|"install-image"|"install-tools"|"bootstrap-sdk"}. install-tools/bootstrap-sdk accept optional packages; all download actions require allowSetupDownloads: true (otherwise 403) and are never automatic.
GET	/apk-vm/apks	Discover *.apk files under the configured roots.
GET	/apk-vm/apk-info?path=…	Static APK metadata (package/version/targetSdk/permissions/features/native code/launch activity/icon path) via aapt2.
GET/HEAD	/apk-vm/apk-icon?path=…	Extract the raster launcher icon from the APK ZIP (PNG/WebP/JPEG).
GET	/apk-vm/devices	List adb devices (serial, state, kind, model, product, transport) plus current/managed-device metadata.
POST	/apk-vm/device	{"serial":"<adb-serial>"} attach an online physical/network device; {"serial":""} detach and restore the managed AVD.
GET/POST	/apk-vm/remote	SSH adb tunnel: POST {"action":"connect","host","user","keyPath"?,"remotePort":5558} or {"action":"disconnect"}; GET returns tunnel status.
POST	/apk-vm/vm	{"action":"start"|"stop"|"restart"|"snapshot"}.
POST	/apk-vm/install	{"path":"C:/path/app.apk"} → install + launch.
POST	/apk-vm/upload	Raw APK/APKS/XAPK/AAB bytes (≤ 500 MiB) with the file name in the x-apk-name header → validate ZIP/APK magic, write to the OS temp dir, install + launch.
GET	/apk-vm/frame?t=…	Latest PNG frame (409 while the VM is not ready).
POST	/apk-vm/input	tap / swipe / key / text payloads.
POST	/apk-vm/touch	Multi-touch scrcpy control ({"action":"down|move|up|cancel","pointerId":0,"x":…,"y":…} in video-frame coordinates) for pinch/zoom.
GET/POST	/apk-vm/clipboard	Read the device clipboard (GET, scrcpy GET_CLIPBOARD) or write text (POST {"text":…}). Explicit calls only; no background clipboard sync.
GET/POST	/apk-vm/snapshots	List named AVD snapshots; POST {"action":"save|load|delete","name":…}.
POST	/apk-vm/ui-test	{"name":…,"assertions":[…],"updateBaseline":false} — UIAutomator assertions + exact-byte screenshot baseline; returns JSON and Markdown.
POST	/apk-vm/network/har	{"path":"…har","method"?,"status"?,"domain"?,"search"?} — load an external proxy HAR, summarize/filter and include bounded entries + curl.
POST	/apk-vm/stream	{"fps":1–10} — set the PNG fallback target frame rate.
POST	/apk-vm/stream/quality	{"preset":"low|balanced|high"} — change H.264 resolution/bitrate/fps; the scrcpy session reconnects.
GET (upgrade)	/apk-vm/ws	WebSocket H.264 stream (see above).
GET	/apk-vm/instances	List default + extra VM instances, including owner, lastUsedAt, idleMs, idleTimeoutMs, videoClients.
POST	/apk-vm/instances	{"name":"agent-a","start":true} — create an isolated AVD/VM; every extra instance has its own H.264 stream.
DELETE	/apk-vm/instances/:id	Stop/dispose an extra instance (the default cannot be destroyed).
GET/POST	/apk-vm/instances/:id/...	Per-instance mirror of state, frame, vm, input, install, upload, debug/*.

Uploaded APKs are written under <os temp>/dsh-apk-vm-uploads and that directory is removed when the plugin is disposed (best-effort stale-file cleanup also runs before each upload).

---

Rooted debug surface

The VM image is the AOSP android-34;default;x86_64 userdebug build. After every boot the Host half prepares a rooted debug environment and captures it in the quick-boot snapshot:

• adb root by default. _prepareDebugSystem() runs adb root, waits for adbd, and verifies uid=0(root). The image has ro.debuggable=1 and ro.adb.secure=0, so there is no adb authorization prompt. State reports root: true plus identity (debugBuild, adbSecure).
• Debug-friendly settings. adb/development settings enabled, package verifier and adb-install verification disabled, persist.sys.usb.config=adb, root-access property set.
• On-device toolkit at /data/local/tmp/dsh/debug.sh (+ README.txt, mode 755): info | logs [lines] | prop <name> [value] | pkgs | install <apk> | help.
• Snapshot persistence. Root state, settings and the toolkit are captured by adb emu avd snapshot save default_boot; a quick boot restores them and adb root is re-applied idempotently.
• The emulator accepts only -prop qemu.* arguments, so root/debug state is applied right after boot (not faked via a -prop ro.* flag) and then snapshotted.

Debug HTTP API (same origin)

Method	Path	Operation
GET	/apk-vm/debug/info	serial, identity (Android/API/ABI/debug), root, toolkit, display, uptime.
POST	/apk-vm/debug/shell	{"command":"id; getprop …"} → rooted shell (bounded stdout/stderr/code).
GET	/apk-vm/debug/logcat?lines=200&buffer=main&filter=…	bounded logcat dump; buffer=crash for the crash buffer.
GET/POST	/apk-vm/debug/prop	read (?name=) / write ({"name","value"}) system properties.
GET	/apk-vm/debug/packages	third-party (or ?all=1 all) packages with APK paths.
POST	/apk-vm/debug/root	ensure adbd is root.
POST	/apk-vm/debug/push	{"localPath","remotePath"} (remote under /data/local/tmp, /sdcard, /storage/emulated/0).
POST	/apk-vm/debug/pull	{"remotePath","localPath"} (local confined to APK roots + temp).
POST	/apk-vm/debug/reboot	{"mode":"system"|"recovery"|"bootloader"}.
POST	/apk-vm/debug/action	force-stop / clear-data / uninstall by package name.
POST	/apk-vm/debug/rotate	{"orientation":"portrait"|"landscape"|"left"|"right"|"upside-down"} or rotation 0..3; locks the guest rotation.
GET	/apk-vm/debug/ui	UIAutomator hierarchy XML (bounded to 500 000 chars) plus node count and guest remote path.
POST	/apk-vm/debug/record	{"seconds":1–60} (default 5) → screenrecord MP4 pulled to the host temp dir; returns localPath and byte size; the panel auto-downloads it.
GET	/apk-vm/artifacts?name=…	Download a screenshot/recording previously written by the plugin into the OS temp dir (basename whitelist, no arbitrary paths).
GET	/apk-vm/debug/perf	load average, /proc/meminfo totals/free/available and the first lines of dumpsys cpuinfo.
GET/HEAD	/apk-vm/debug/screenshot	PNG download (Content-Disposition: attachment).

Agent tool apk_vm

Registered globally through ctx.tools, so every DSH agent can operate the rooted VM directly: info, shell, logcat, getprop, setprop, packages, install, push, pull, reboot, root, force_stop, clear_data, uninstall, rotate, ui_dump, record, perf, screenshot, high-level input tap / swipe / long_press / key / text (device coordinates), UI automation find_ui / assert_text / tap_text (UIAutomator text/resource-id/content-desc/class), clipboard clipboard_get / clipboard_set, static apk_info (metadata without booting a VM), device management (devices, attach_device, detach_device), plus start / stop and instance management (list_instances, create_instance, destroy_instance). It calls the same Host methods as the HTTP routes and the panel (no duplicated logic).

For concurrent Agents, pass instance to target a specific VM; when omitted, the tool resolves the calling Agent's assigned instance (first Agent → default VM, later Agents → isolated instances created on demand until maxInstances). Each extra instance has its own H.264 WebSocket (/apk-vm/instances/<id>/ws) and falls back to PNG if WebCodecs is unavailable.

UI automation is live-verified against a multi-instance VM: find_ui {"text":"Phone"} returned Phone @ 102,1121, assert_text {"text":"Phone"} found one node, tap_text {"text":"Phone"} tapped that center and opened the app, and key HOME returned to the launcher.

Panel UI

The APK VM panel has an Environment card (readiness, missing items, Create AVD / Download image / Re-check) and a Rooted debug card: root/shell badge, Android/API/ABI line, rooted command input (equivalent to adb shell), Logcat / Live logcat / Crash log / Props / Root / UI tree / Perf / Record 5s / Rotate / Screenshot buttons, and a bounded output console.

---

Compatibility with dsh-better-sidebar

dsh-better-sidebar is the community sidebar workbench (right-sidebar tabs, bottom workbench, file viewers). When it is active, this plugin registers a real tab type through its documented service — no forks, no DOM hacks, no hard dependency:

• The client half defers with ctx.inject(['betterSidebar'], …), so the plugin keeps working unchanged on a plain DSH and simply gains the tab when the service appears.
• ctx.betterSidebar.registerTab({ id: 'apk-vm:preview', title, description, icon, order: 60, single: true, component }) — the tab appears in the native right Sidebar's + menu and in the bottom workbench, rendered with the same VM console adapted to a narrow pane (stacked APK list, compact header, visible-gated frame polling).
• The main panel gains an "Open in side bar" action that calls ctx.betterSidebar.openTab({ type: 'apk-vm:preview', target: 'right' }) for the active session (with a clear message when no session is open).
• Everything degrades cleanly: the service is optional, and a missing/broken service never affects the native main panel or the left sidebar entry.

Live-verified in the reference profile: the sidebar.right.pane.tab slot lists the occupant dsh-better-sidebar:apk-vm:preview (active: true). The sandbox test spike/ui-better-sidebar-smoke.cjs separately asserts descriptor fields, localization, disposal, the "already present" path, and resilience when the service disappears.

---

Performance

Measured on the reference host: Windows x64, AEHD 2.2 hardware acceleration, -gpu host (NVIDIA RTX 5070 Ti), AOSP system-images;android-34;default;x86_64 (Android 14 / API 34). These are observations from a single machine, not universal guarantees.

Metric	Result
Cold boot (first boot; also after re-saving the snapshot for the current AVD config)	29.5 s
Quick boot (snapshot restore)	8.4 s measured (Boot completed in 8371 ms, bootKind: snapshot); 8.4–10.5 s across runs — inside the 30 s target
Raw H.264 stream over /apk-vm/ws (60 Hz animation test app)	~59.3 fps (425–474 packets in 8 s, zero protocol errors)
Headless browser software WebCodecs decode	318 frames / 6.32 s = 50.3 fps (~57 fps excluding ~0.7 s startup)
Late second client (keyframe recovery)	234 packets / 4 s (~58.5 fps) after RESET_VIDEO
PNG screencap fallback	~1.1 fps at 720×1280 (transport limit; not a regression)
Rooted guest	adb shell id = uid=0(root); ro.debuggable=1; ro.adb.secure=0; toolkit installed (755)

FPS is content-driven: scrcpy only emits frames when the screen changes, so a static home screen legitimately shows a low FPS. The 60 Hz animation test sustains ~59 fps over the wire. The Target FPS selector applies only to the PNG fallback; the H.264 path is capped by scrcpyMaxFps.

---

Verification

Automated checks (CI)

.github/workflows/ci.yml runs on ubuntu-latest with Node.js 24 on every push and pull request (full headless suite), plus a cross-platform headless matrix (ubuntu-latest, windows-latest, macos-latest) that runs syntax checks, setup detection, instance lifecycle and the UI bundle smoke test:

• node --check on index.js, client.js and every lib/*.js module;
• spike/ui-smoke.cjs — 136 sandbox assertions against the real client bundle (module wrapper, registration, i18n, rendering states, POST handlers);
• spike/ui-better-sidebar-smoke.cjs — descriptor / localization / disposal / fallback assertions for the optional integration;
• spike/setup-smoke.mjs — 30 hermetic environment-detection / create-avd / install-image / setup-report checks (mocked OS layouts and exec, no SDK needed);
• spike/android/mock-device.mjs — device critical path against a mock adb (24 checks), including real aapt2 APK metadata parsing;
• spike/android/launch-plan.mjs — fast-boot argv plans (snapshot restore, fail-fast without a hypervisor, explicit TCG, -no-snapshot).

No Android emulator or AVD is required in CI. Emulator-dependent integration tests are Windows-local only and are not suitable for hosted CI runners (nested virtualization is not available on GitHub-hosted runners).

Reference-host verification

Check	Result
Bundle install via DSH plugin_manager install_bundle	application: applied, no warnings
Sidebar registration (sidebar.panellist, id apk-vm, order 30)	active in the live slot tree
Main panel registration (main, key apk-vm)	active in the live slot tree
GET /apk-vm/state / GET /apk-vm/apks	200 {"ok":true,…}; discovered the workspace sample.apk and user APKs
GET /apk-vm/frame while stopped	409 with JSON error (as specified)
Client bundle	node --check OK; 136/136 sandbox checks pass
dsh-better-sidebar tab	live sidebar.right.pane.tab occupant dsh-better-sidebar:apk-vm:preview; smoke test passes
Host/backend modules	node --check OK; lib/android.js smoke tests 11/11; mock-device 24/24
Environment detection	spike/setup-smoke.mjs 30/30 (hermetic, runs on CI)
scrcpy relay	160 assertions incl. a fake-device end-to-end protocol test; real emulator measured ~59 fps
H.264 / WebCodecs	raw stream 59.3 fps; headless software decode 50.3 fps; late-client keyframe recovery works
Fast boot	cold 29.5 s; quick boot 8.4–10.5 s (bootKind: snapshot)
Rooted guest / debug API	root:true, debugPrepared:true; /debug/info, /debug/shell, /debug/logcat, /debug/prop, /debug/packages, snapshot save all returned ok
Agent tool apk_vm	registered through ctx.tools; DSH reported the updated tool schema

The APK upload, environment card, and the added device actions (rotate / UI tree / record / perf / screenshot download) are implemented in this release and covered by the syntax and headless suites where applicable; the measured table above only lists values that were actually observed. No screenshots are published yet (see Demo).

Run the same headless suites locally (Windows or any OS) from the repository root:

node --check index.js
node --check client.js
for f in lib/*.js; do node --check "$f"; done
node spike/ui-smoke.cjs
node spike/ui-better-sidebar-smoke.cjs
node spike/setup-smoke.mjs
node spike/android/mock-device.mjs
node spike/android/launch-plan.mjs

spike/android/mock-device.mjs needs a real aapt2; install Android SDK build-tools or point ANDROID_HOME / ANDROID_SDK_ROOT at an SDK that has them.

---

Troubleshooting

The Environment card says "Setup needed"

The report lists each missing item: SDK path, adb, emulator, sdkmanager/avdmanager, the configured system image, the AVD, or CPU acceleration.

• Missing SDK/emulator: install Android SDK packages and/or set sdkRoot (or ANDROID_HOME / ANDROID_SDK_ROOT).
• Missing system image: install it with sdkmanager, or set allowSetupDownloads: true and use Download image in the card (large download; never automatic).
• Missing AVD: use Create AVD in the card (requires the system image and avdmanager) or run avdmanager create avd -n dsh_apk -k "system-images;android-34;default;x86_64".
• Missing acceleration: see the next section.

"No usable CPU hypervisor (AEHD/WHPX) was found"

The plugin fails fast (requireAccel: true by default) because an x86_64 system image cannot boot under pure software TCG. Check with "$ANDROID_HOME/emulator/emulator" -accel-check, then:

• Windows (AEHD): install the extras;google;Android_Emulator_Hypervisor_Driver package or the standalone AEHD installer, then reboot. Conflicts with Hyper-V/WHPX, WSL2, memory integrity/VBS, or vendor emulator drivers (MuMu, BlueStacks, LDPlayer, Nox) can prevent AEHD from loading or cause an installer error such as 1450 — stop/disable the competing driver, reboot, and retry. Do not run two hypervisor stacks at the same time.
• Windows (WHPX): enable the Windows Hypervisor Platform feature and reboot. If the Windows component store is damaged, enabling WHPX can fail (for example DISM error 14098); repair Windows or use AEHD instead.
• Linux: enable KVM in the firmware, load the KVM module, and make sure your user can open /dev/kvm.
• macOS: HVF is built in; make sure the machine is not running inside another VM.

Setting requireAccel: false / accel: off is only useful for diagnostics — the x86_64 guest is not expected to finish booting that way.

AEHD installed but the emulator is slow or refuses to start

• Confirm the driver is running (sc query aehd on Windows) and that virtualization is enabled in the BIOS/UEFI.
• A stale vendor driver (for example MuMu's MuMuVMMDrv) can hold AMD-V/VT-x. Stop/disable it and reboot. (Restore it later if you still use that emulator.)
• A reboot is required after changing hypervisor-related Windows features or drivers.

Emulator / scrcpy port conflicts

Port	Used for	Fix
5558 (port)	Emulator console port	Change port, or close the stale emulator/adb process.
27183 (scrcpyPort)	Local adb forward for the scrcpy tunnel	Change scrcpyPort.
5037	adb server	adb kill-server if a stale or foreign adb server owns it.

Quick boot fails: "different AVD configuration", black screen, or no snapshot

• The snapshot is only valid for the AVD configuration that created it. After changing the AVD (API level, ABI, resolution, GPU mode, -writable-system, …) delete the old snapshot and let the plugin create a new one: remove ~/.android/avd/<avdName>.avd/snapshots/<snapshotName> (on Windows, %USERPROFILE%\.android\avd\<avdName>.avd\snapshots\<snapshotName>), then start cold again.
• A snapshot directory with ram.img but no snapshot.pb is not a valid snapshot; the plugin ignores it. Delete it or set quickBoot: false once to force a clean cold boot.
• If a stale offline adb emulator is attached, adb kill-server (or kill the leftover emulator/qemu-system-* process) and retry.

APK upload fails

• The upload endpoint accepts raw .apk/ZIP bytes up to 500 MiB; larger files return 413 and non-ZIP content returns 400. Use Install from path for unusual cases.
• Only one install (path install or upload) can run at a time — a concurrent request returns 409; wait for the current install to finish.
• A file that installs on a phone can still be rejected by the emulator (ABI/split APK); the error is shown in the panel and in /apk-vm/state.

The sidebar panel does not update after install/upgrade

• Reload the DSH Web page so the new client.js bundle is loaded; a long-lived tab may keep the old bundle cached.
• If API requests return 401/403 after a DSH restart, sign in / refresh the session — the DSH Web GUI requires its auth token, and the plugin routes live behind the same server.
• Check the plugin log tail in the panel (/apk-vm/state → vm.logTail) and the DSH host log.

Low FPS / a blank canvas

• A static screen legitimately shows low FPS — scrcpy only encodes frames when the display changes. Measure with an animation, not the home screen.
• A blank canvas that never receives a keyframe: reload the page; the panel requests RESET_VIDEO on connect. If the browser has no WebCodecs/WebSocket, the panel falls back to PNG polling (~1 fps) automatically.
• The Target FPS selector changes only the PNG fallback; use scrcpyMaxFps for H.264.

APK is not listed / aapt2 errors

• Add the project directory to roots; the DSH working directory, process.cwd() and the home directory are searched automatically.
• Install Android SDK build-tools (provides aapt2) and make sure ANDROID_HOME / ANDROID_SDK_ROOT points at the SDK, or set the SDK root via config.
• A malformed or non-APK file is rejected by aapt2 dump badging; the panel surfaces the error.

macOS / Linux notes

SDK/adb/emulator/AVD discovery covers the standard per-OS layouts (including Homebrew and /opt style installs), but end-to-end emulator + streaming behavior has only been verified on Windows x64 so far. If you hit a platform issue, include /apk-vm/setup output in the bug report — it lists exactly which paths were detected.

---

Security

This plugin intentionally exposes powerful local control over an Android emulator. Read this before pointing the DSH Web UI at an untrusted network.

• The plugin manages processes on your machine. It spawns the Android emulator, adb, sdkmanager and avdmanager with child_process.spawn(exe, argv) — never through a shell — so user-supplied strings are not shell-interpreted. Paths are validated (APK/bundle paths must exist and end in .apk/.apks/.xapk; push/pull paths are restricted to /data/local/tmp, /sdcard, /storage/emulated/0 and allowed local roots).
• Only emulators spawned by this plugin are stopped. stop() sends adb emu kill only when this process owns the emulator; a pre-existing/attached device (physical, remote adb or a manually started emulator) is detached and left running.
• The guest is deliberately rooted and debuggable. adb root, ro.debuggable=1 and ro.adb.secure=0 mean anything you install inside the VM is not sandboxed from root. Do not put real secrets or personal data in the AVD.
• The debug HTTP API is a local root shell for the guest. /apk-vm/debug/shell runs arbitrary commands inside the emulator (not on the host), and /apk-vm/debug/action can uninstall packages. Requests are same-origin only and bounded, but any page/extension that can make same-origin requests to your DSH Web server can exercise them.
• Upload and environment setup are privileged local actions. Upload accepts only APK/ZIP bytes up to 500 MiB and installs them into the guest; create-avd writes an AVD; and install-image runs sdkmanager --install only when the user opted in with allowSetupDownloads: true (default false). All of these are reachable only from the same origin.
• The apk_vm Agent tool is available to every agent in the DSH profile. Grant agent access to this plugin with the same care as giving an agent a terminal on an Android device.
• Loopback-only by default. In addition to the same-origin check, every /apk-vm/* HTTP route and the WebSocket upgrade reject non-loopback clients unless allowRemote: true is explicitly set (for use behind your own authenticated reverse proxy). This means exposing the DSH Web UI on the LAN does not automatically expose the root debug API.
• Keep the DSH Web server local. If you expose the DSH Web UI beyond localhost (reverse proxy, LAN bind, tunnel), you also expose the plugin routes. Add authentication at the proxy layer or keep the port local; do not disable the same-origin/loopback checks.
• No telemetry. The plugin makes no network requests of its own to third-party services; it only talks to the local adb/emulator and the same-origin DSH Web server (the opt-in install-image action runs the user's own sdkmanager, which does contact Google's SDK repository).

To report a vulnerability, follow SECURITY.md — please use private disclosure, not a public issue.

---

Roadmap

The features below are not shipped yet — they are tracked for future releases. Everything described above is implemented in this release.

• Physical-device switching — first-class selection/attachment of adb-attached physical devices from the panel (config serial already supports attaching one; multi-AVD switching is shipped via /apk-vm/avds + /apk-vm/avd and the Environment card).
• Audio streaming — forward guest audio alongside the video stream.
• Cloud / remote VM execution — run the guest on a remote host and stream it to the panel.
• Static APK preview (optional) — inspect an APK's manifest, resources and launcher UI without booting a full VM.

QEMU + Android-x86 for hosts without hardware virtualization and -writable-system image customization remain research notes in DESIGN.md §8.

---

Known limitations

• Windows x64 and Linux x86_64 are the end-to-end verified platforms. macOS SDK/adb/ emulator/AVD discovery and headless checks are implemented, but emulator + H.264 behavior on macOS (and arm64-v8a images on Apple Silicon) is unverified.
• Hardware virtualization is mandatory for the x86_64 AOSP image; pure TCG fails by design.
• Quick boot is snapshot-based. Changing AVD configuration invalidates the snapshot; recreate it as described in Troubleshooting.
• H.264 FPS is content-driven. Static screens show low FPS; the PNG fallback is ~1 fps by transport limitation.
• The rooted debug API is local-only by design. Do not expose the DSH Web port to untrusted networks.
• No audio and no physical-device switching yet (multi-AVD switching is available; see Roadmap).

---

Contributing

Contributions are welcome. Start with CONTRIBUTING.md for the development workflow, repository layout, the checks to run before a PR, and the rules for the UI half (theme tokens, localization, no new npm dependencies). All participants are expected to follow CODE_OF_CONDUCT.md. Security issues should follow SECURITY.md. By contributing you agree that your contributions are licensed under the repository's Apache-2.0 terms. Release mechanics are in docs/RELEASING.md.

Quick reference for a change:

node --check index.js && node --check client.js
for f in lib/*.js; do node --check "$f"; done
node spike/ui-smoke.cjs
node spike/ui-better-sidebar-smoke.cjs
node spike/setup-smoke.mjs
node spike/android/mock-device.mjs
node spike/android/launch-plan.mjs
node spike/instances-smoke.mjs
node scripts/privacy-scan.mjs

Use .github/ISSUE_TEMPLATE/bug_report.yml for bugs and .github/ISSUE_TEMPLATE/feature_request.yml for features. Emulator integration testing is Windows-local only (see CONTRIBUTING.md); hosted CI runs the headless suites only.

---

License

Licensed under the Apache License, Version 2.0 — see LICENSE. Third-party components and attribution are listed in NOTICE.

• scrcpy — © Genymobile and contributors, Apache-2.0. The server JAR lib/vendor/scrcpy-server-v5.0.1.jar is redistributed unmodified under that license and is pushed to the guest at runtime; the desktop scrcpy client is not used.
• AOSP Android Emulator / system images / adb — © The Android Open Source Project, Apache-2.0. They are installed separately through the Android SDK and are not bundled in this repository.
• dsh-better-sidebar — a separate community plugin (not bundled here); the optional integration uses its published service only.

This project is not affiliated with or endorsed by Genymobile, the Android Open Source Project, or the DeepSeek Harness project. "Android" is a trademark of Google LLC.
